Схемы KING LONG XMQ 6900.

Схемы KING LONG XMQ 6900.

XMQ 6900 CNG Yuchai.

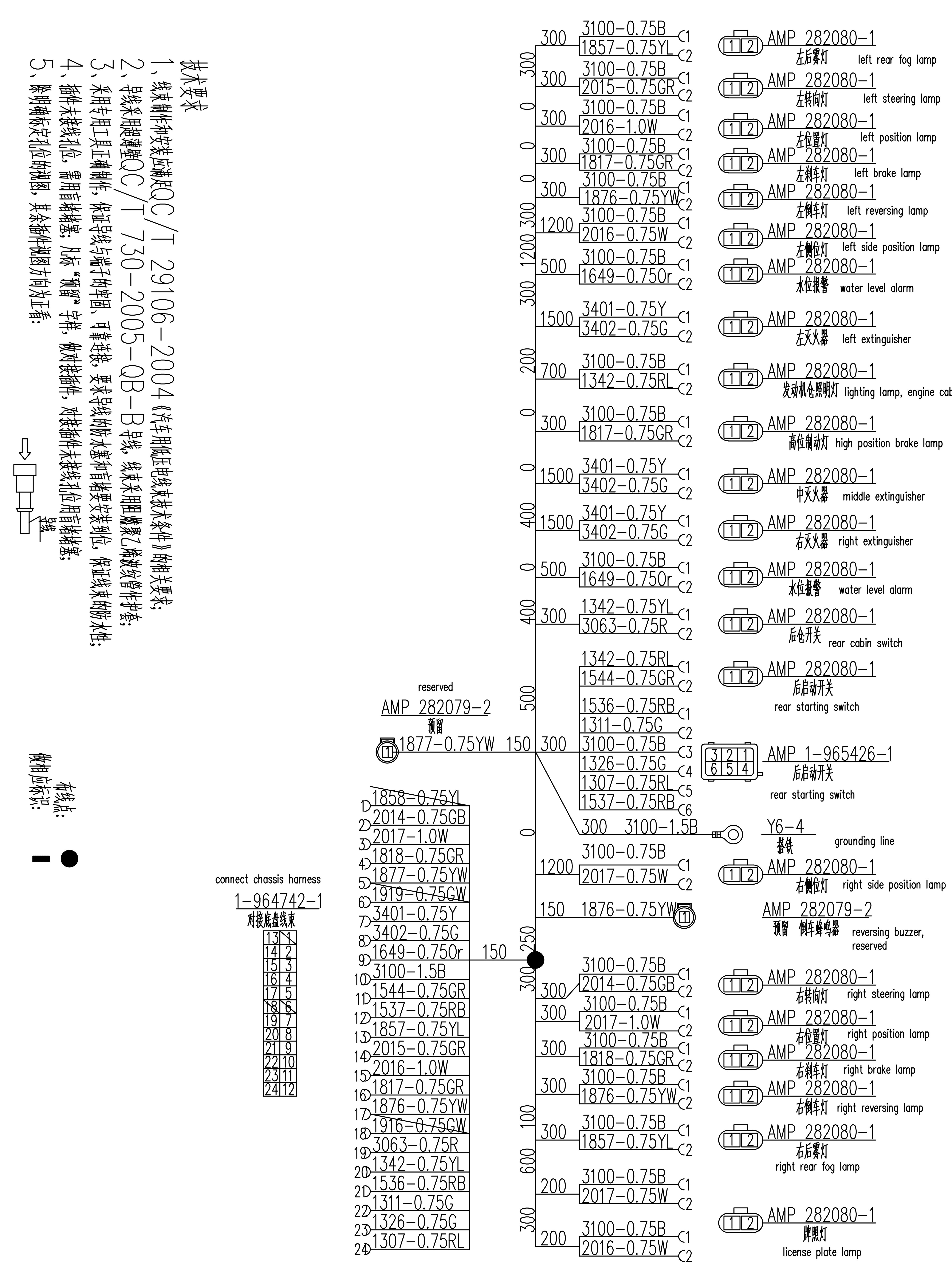

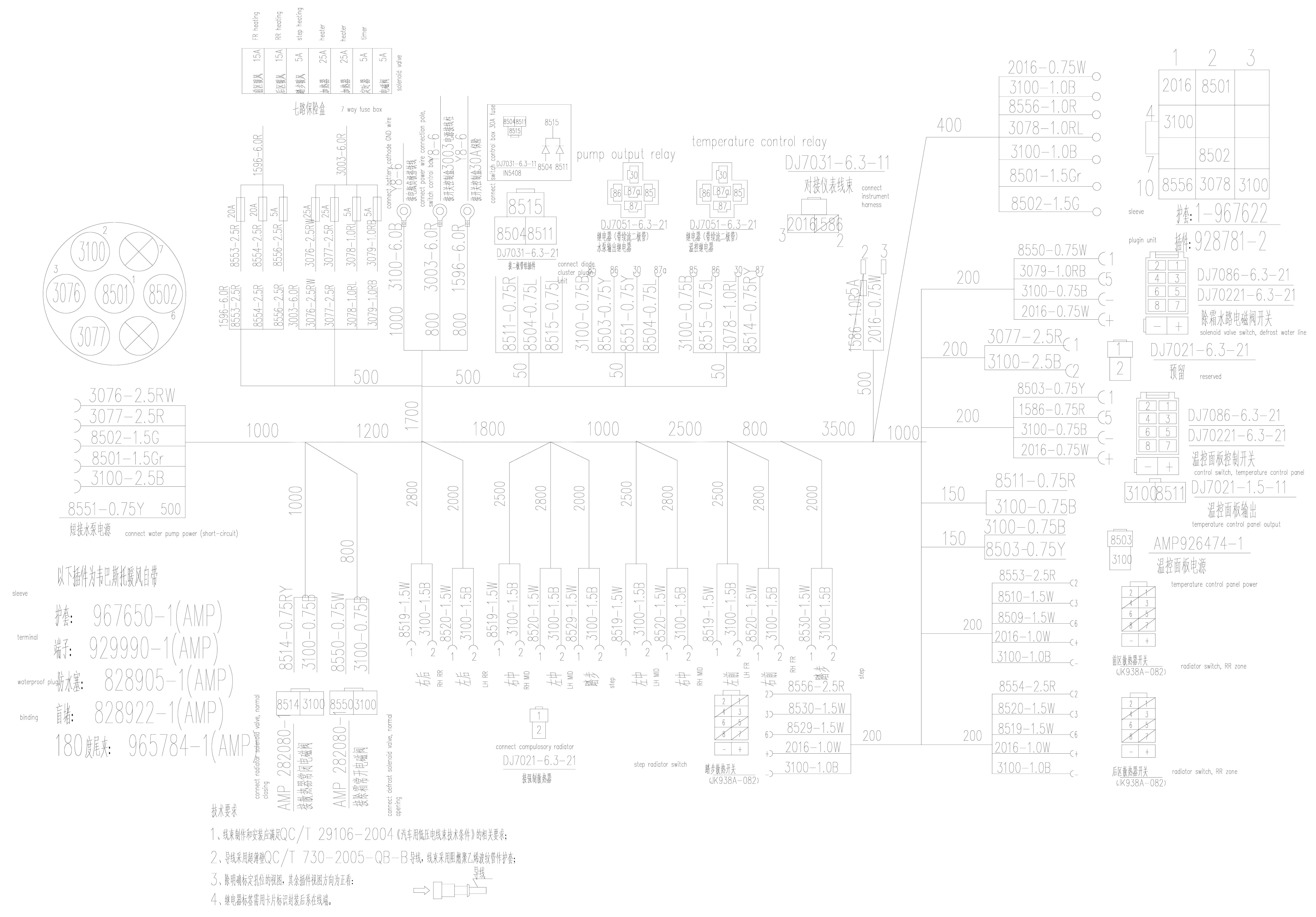

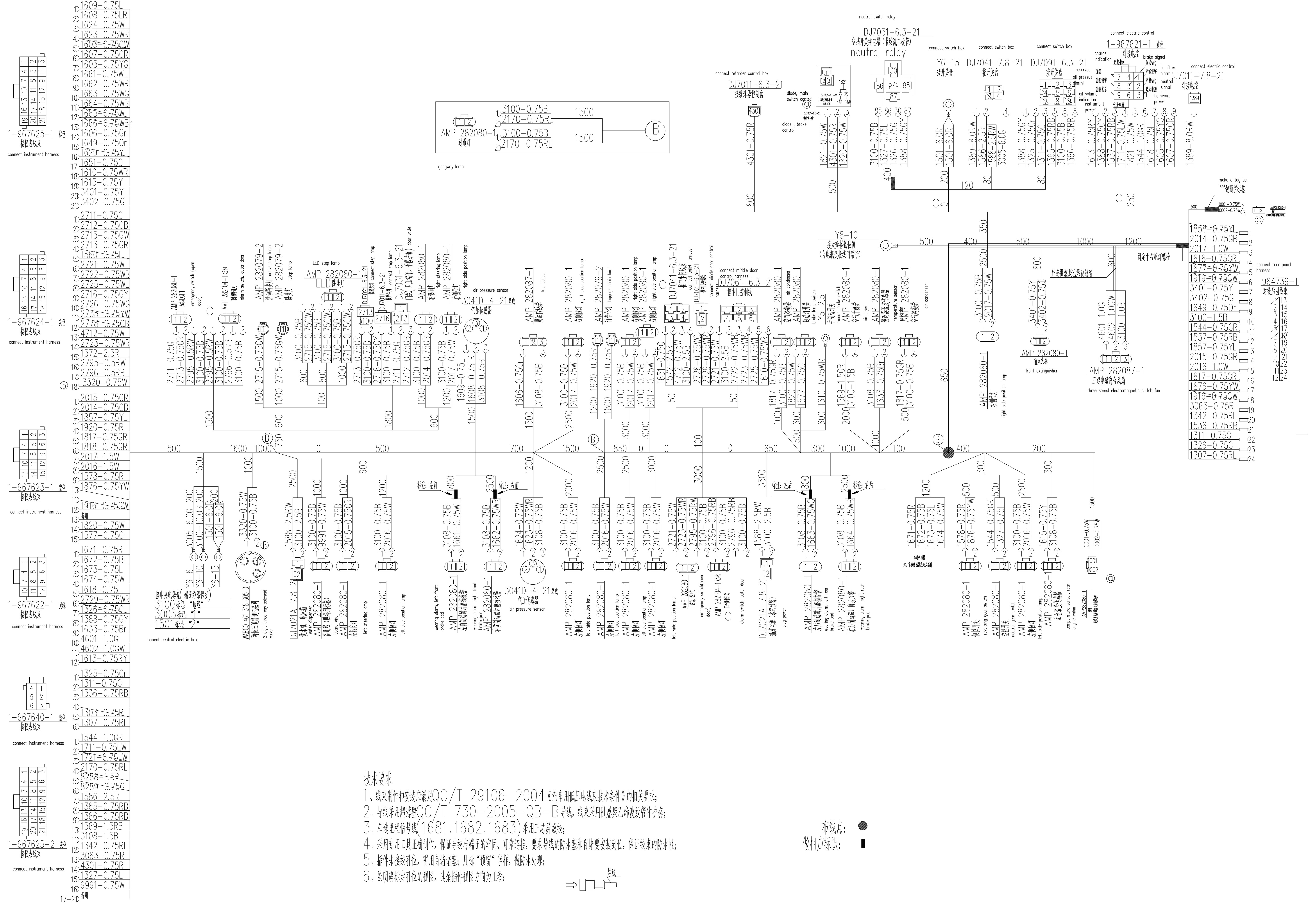

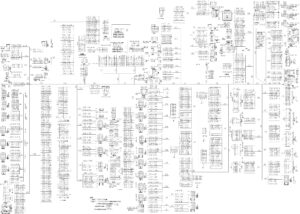

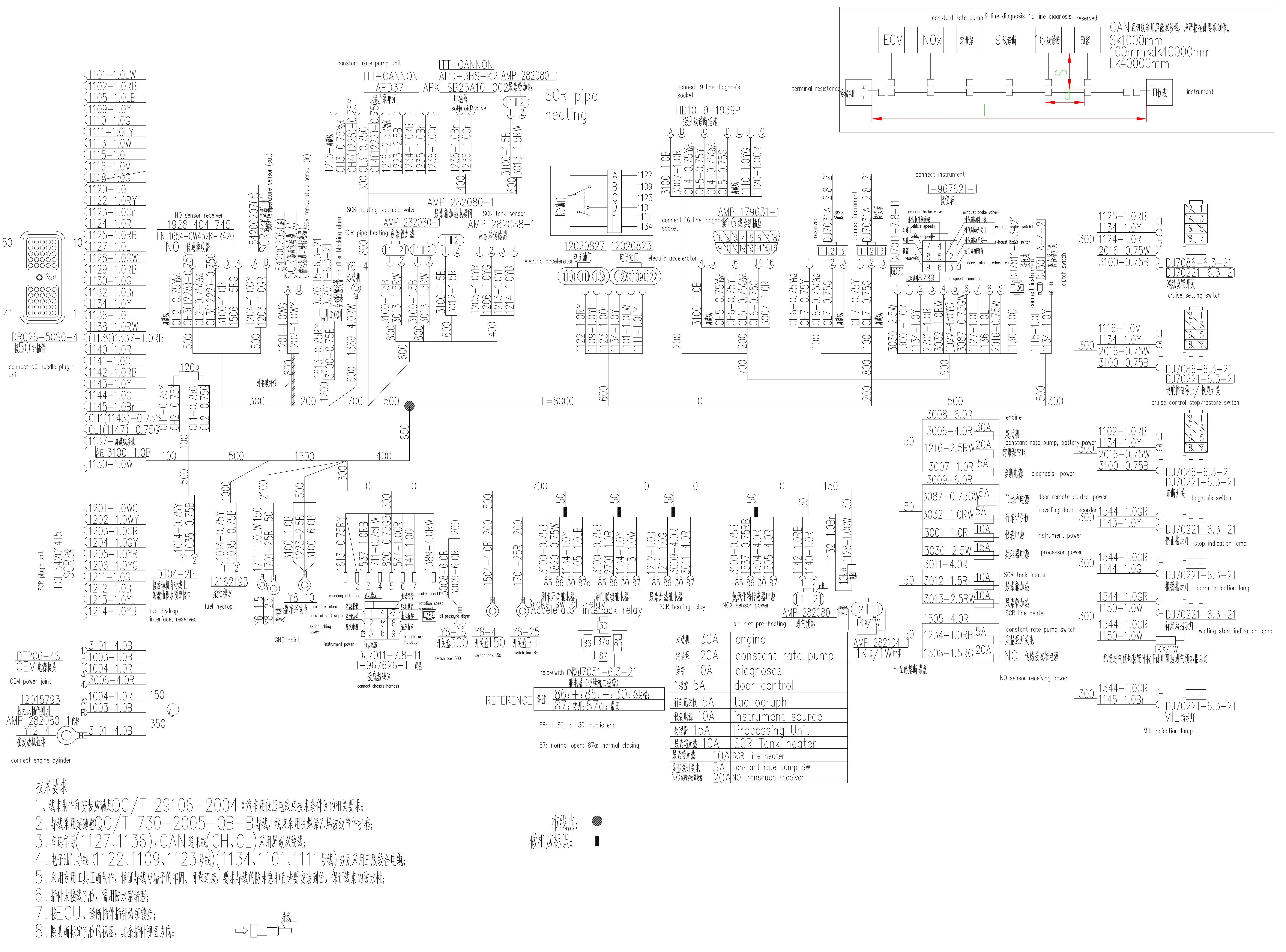

Chassis harness (237105170).

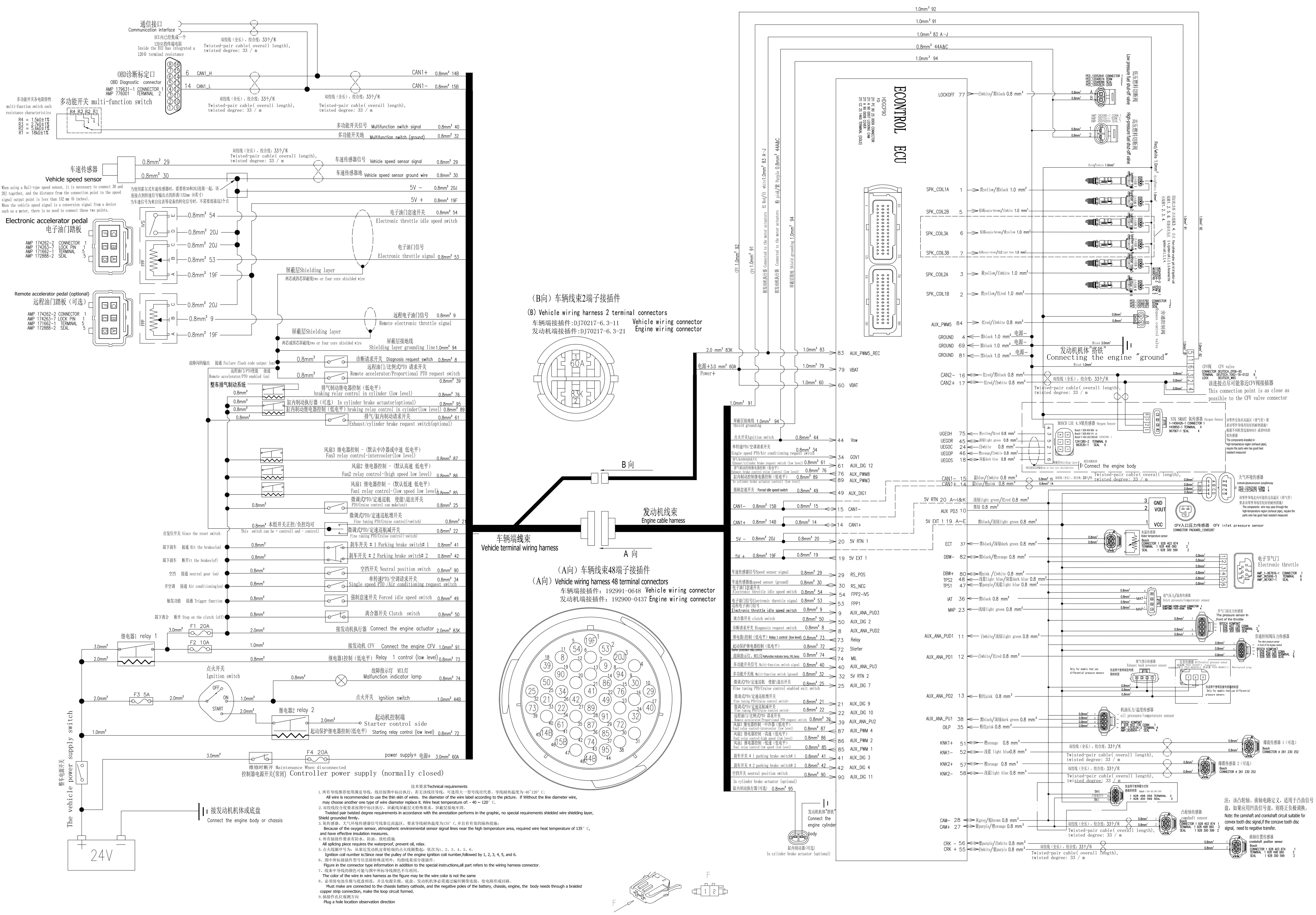

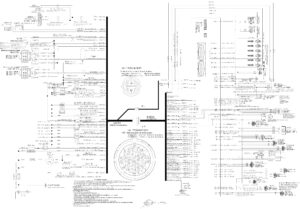

Electric injection engine harness (237200024).

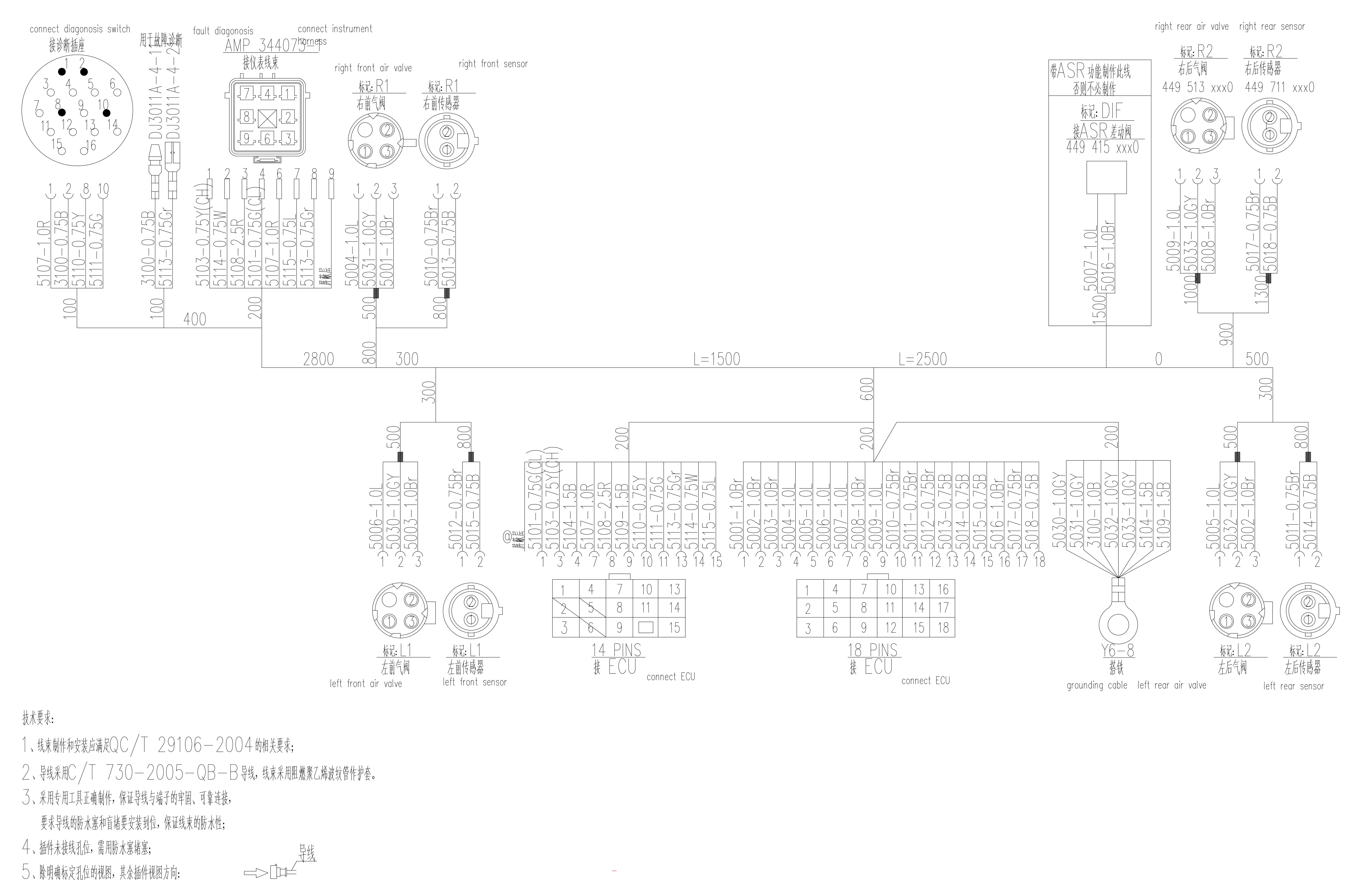

Control harness ABS midi bus (237400560).

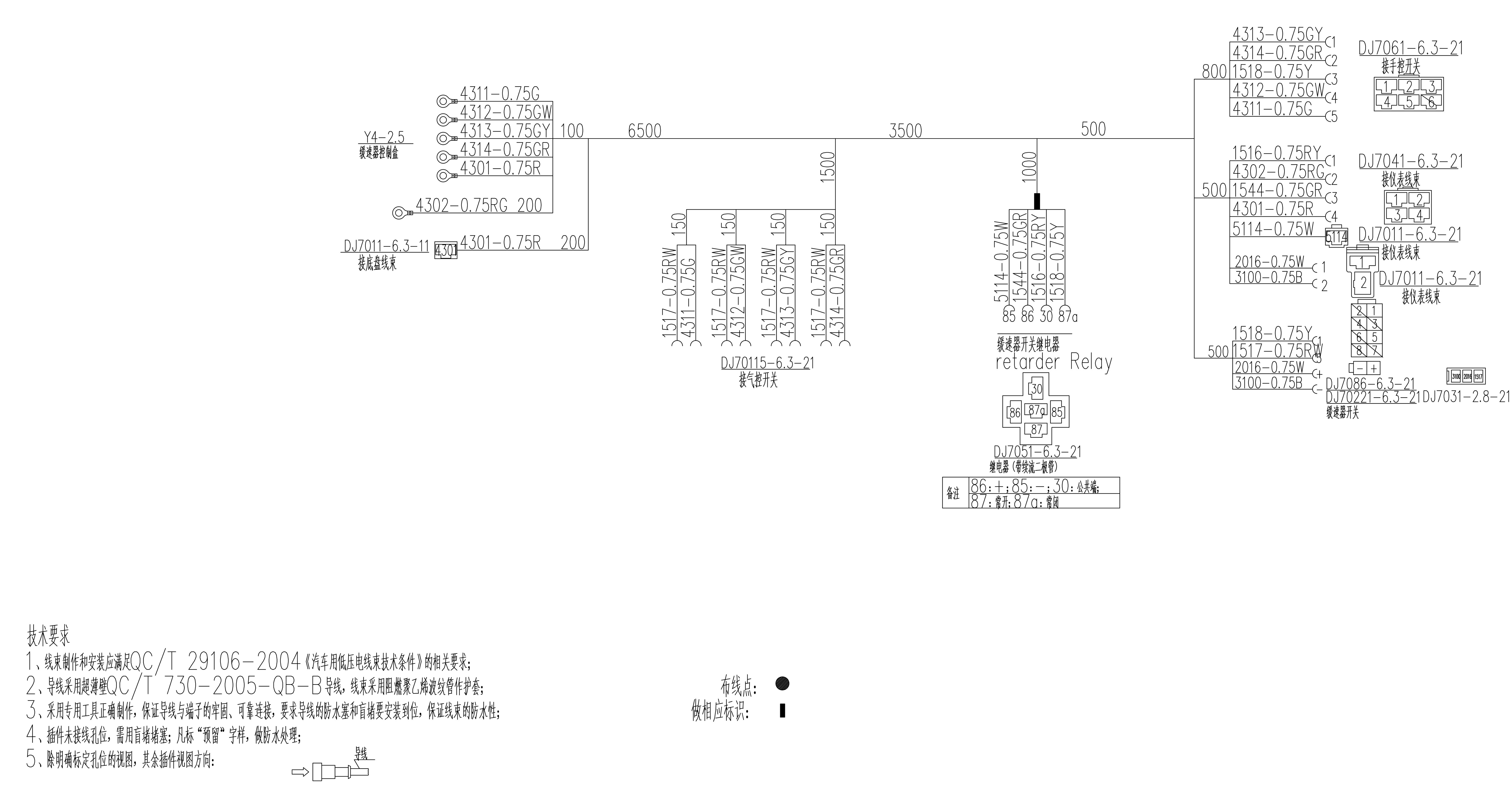

Control harness retarder (237401780).

Heating control harness (237700038).

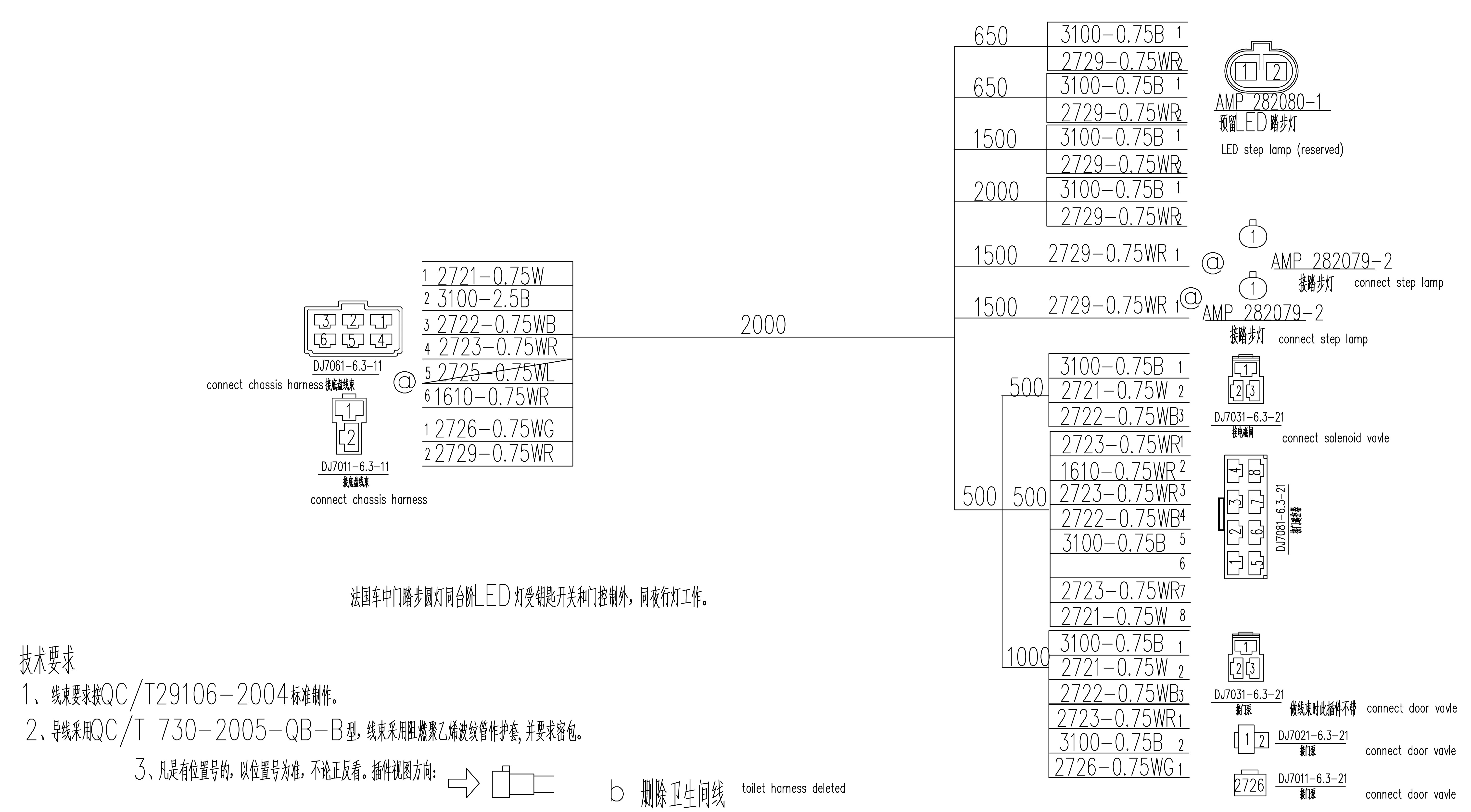

Middle door harness (237800540).

Instrument harness (241100049).

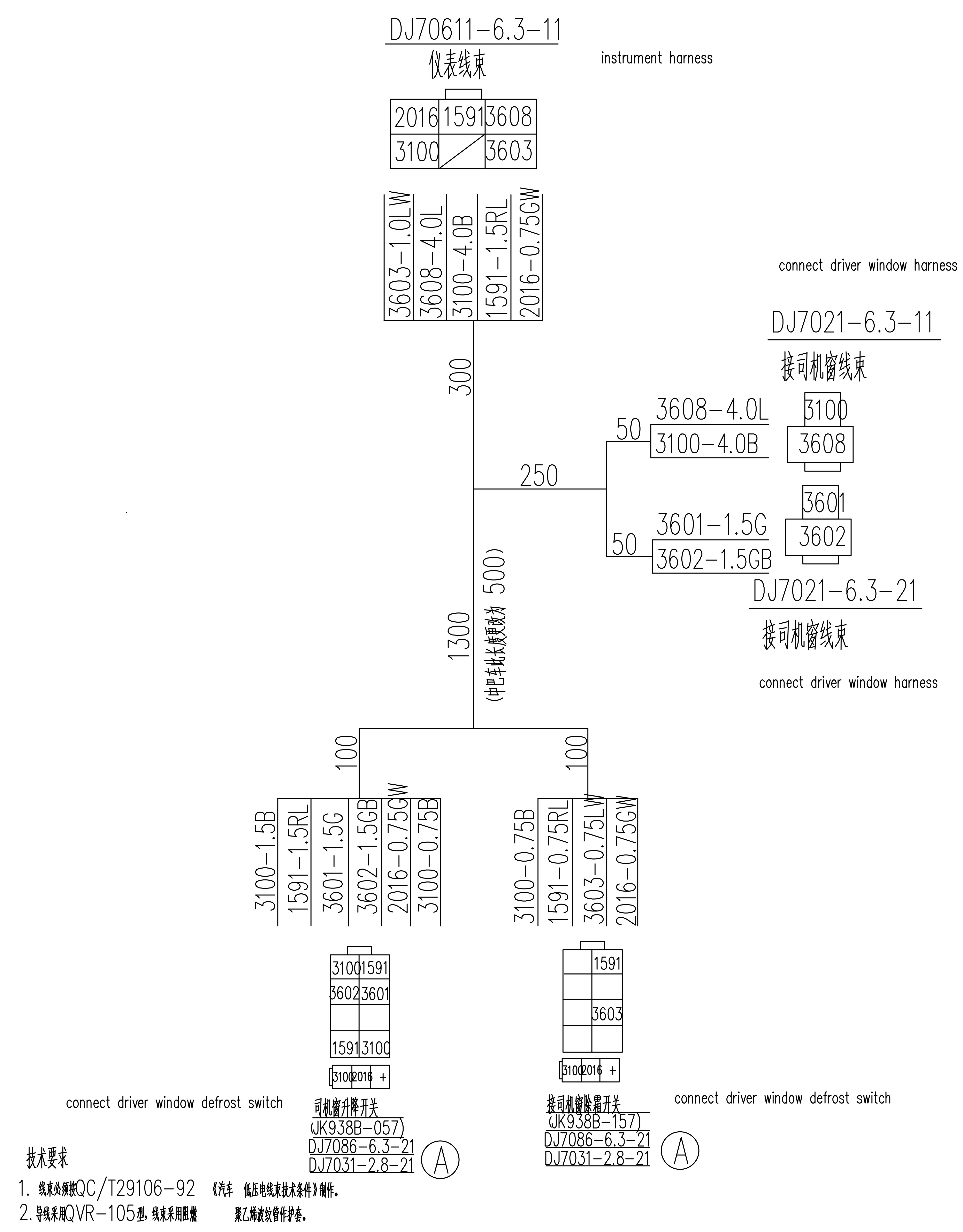

Electric driver window harness (241200910).

Ceiling harness (241300044).

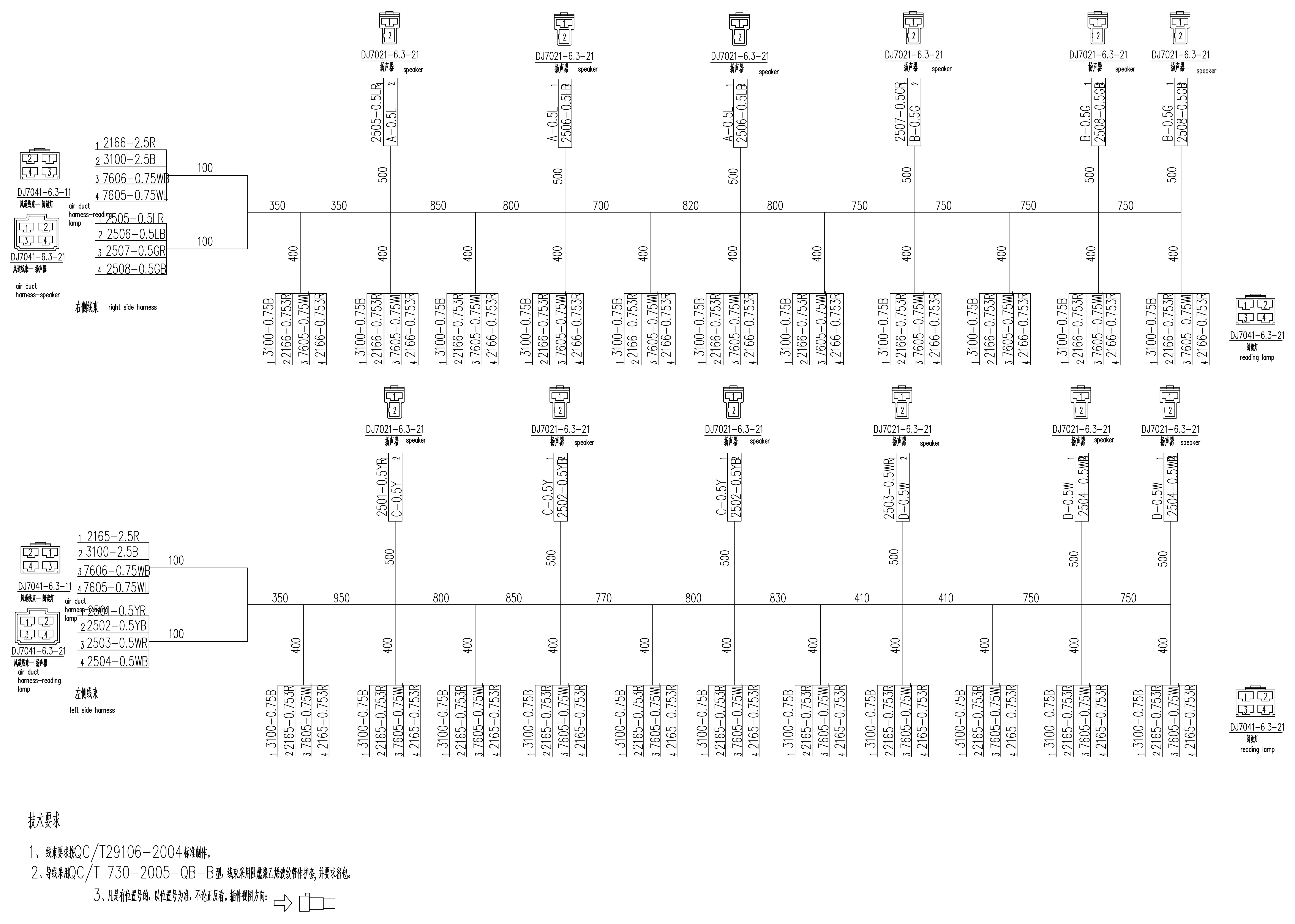

 Air duct harness (241401410).

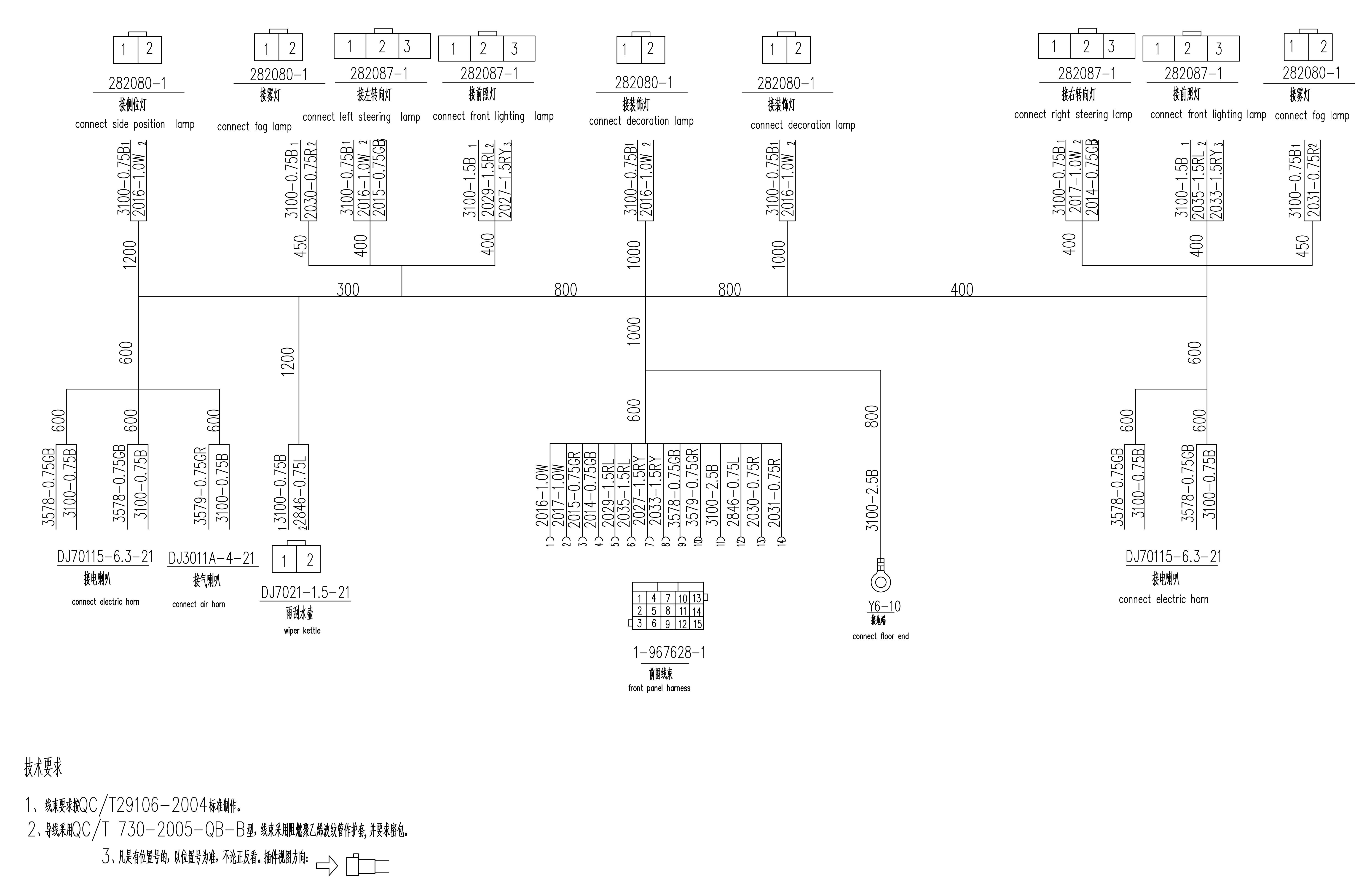

Front panel harness (241501220).

Rear panel harness (241600660).

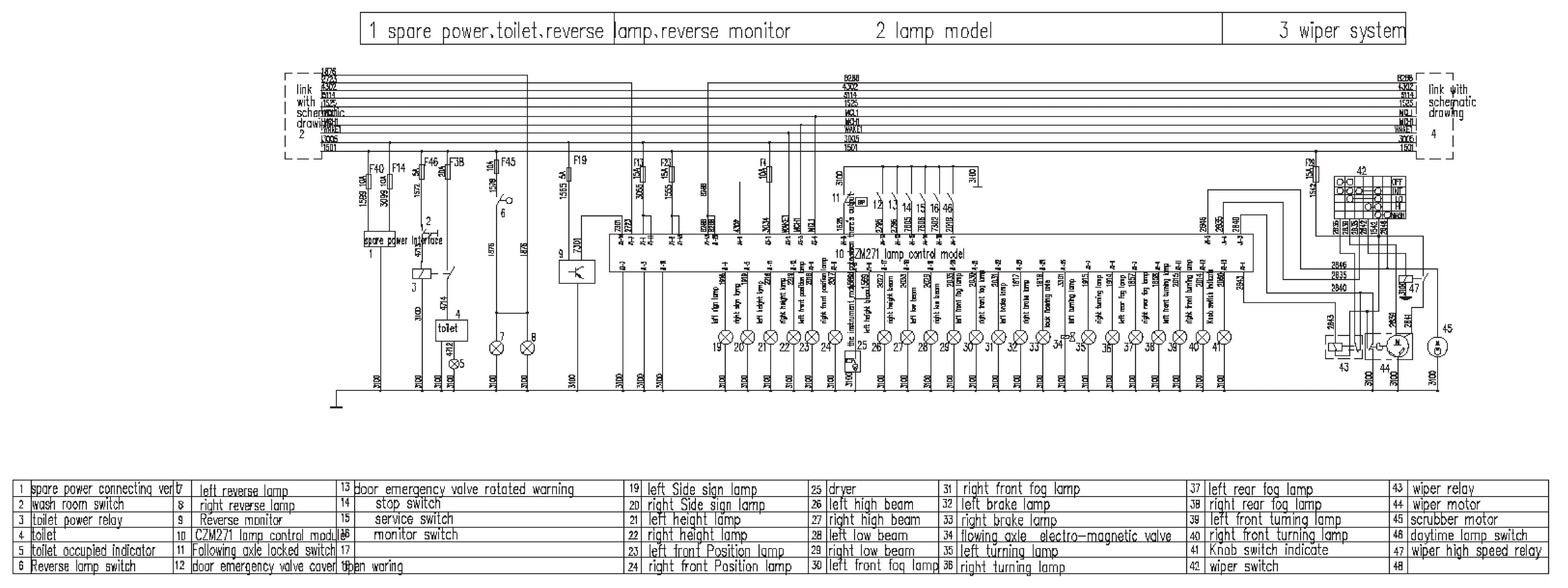

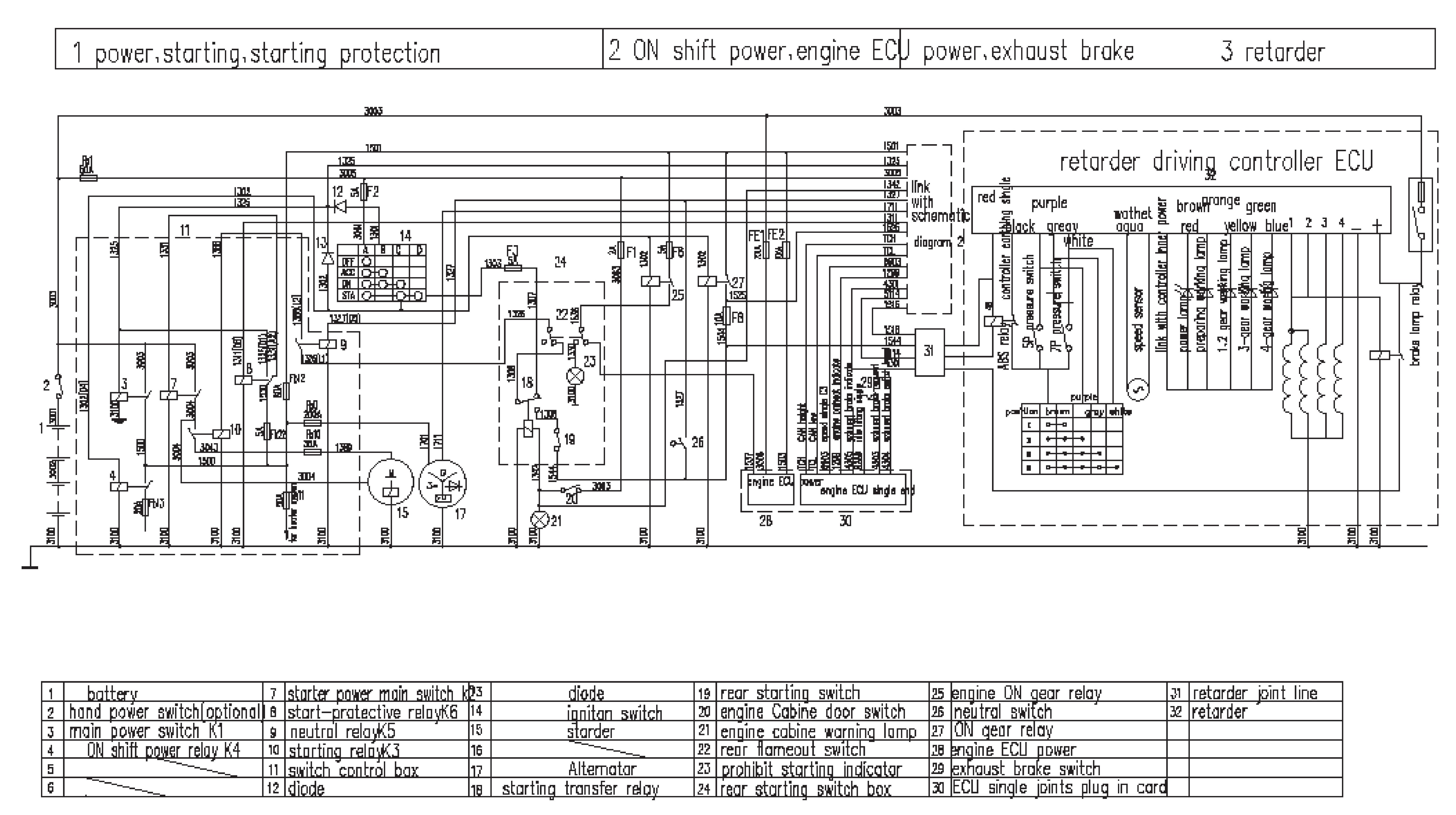

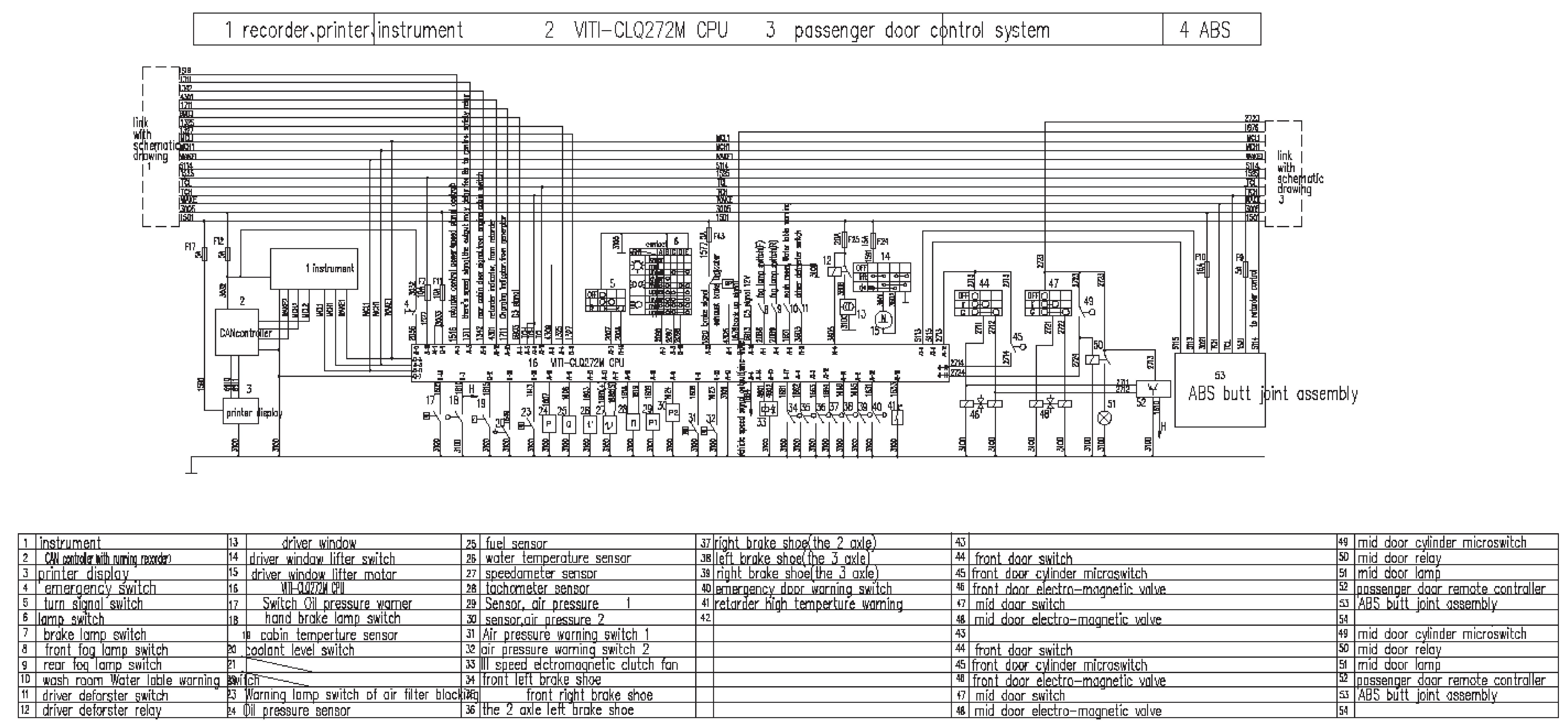

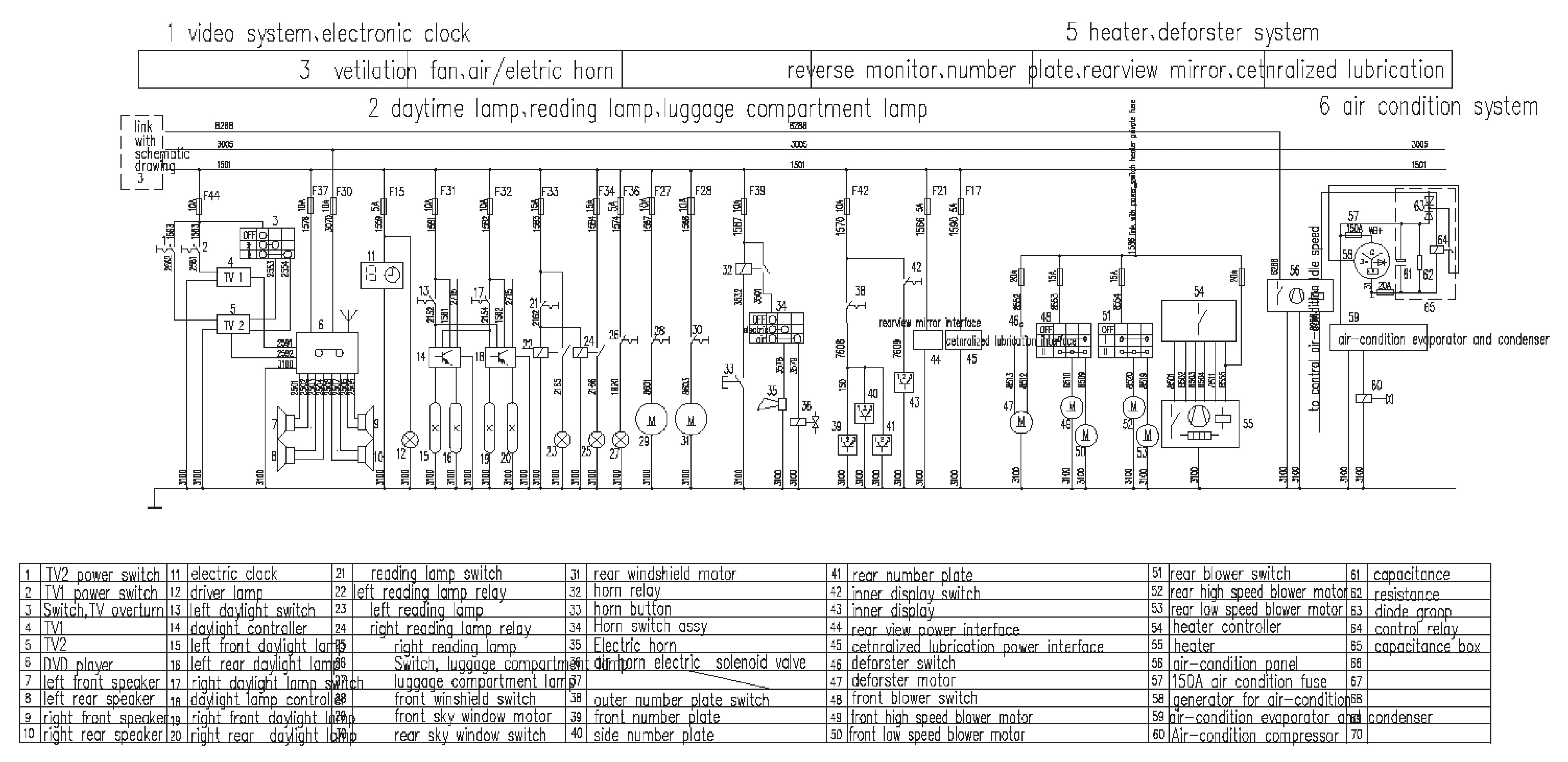

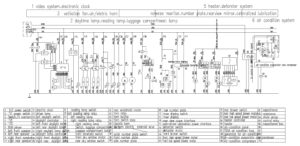

Electric schematic diagram of the complete car.

1.

2.

3.

4.
